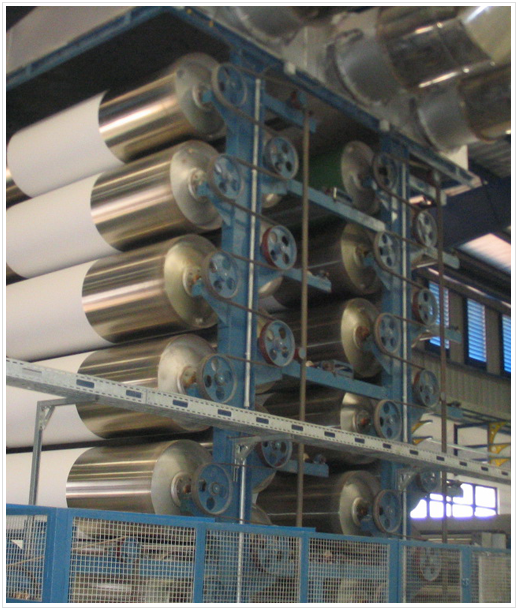

| Indirect drying using Stainless Steel Cylinders. |
| Suitable for one or two sided drying of all types of fabrics. |
| High Efficiency method for intermediate or final drying. |
| |
|
| Cylinder Width |
1200 to 3600 mm |
| No of Cylinders per stack |
2 to maximum 12 |
| Cylinder Diameter |
400, 570, 762 or 800 mm |
| Design Pressure |
5 Bar |
| Cooling Cylinders |
Stainless Steel
Jackated construction for cooling water circulation |
| Drive |
Belt Drive, Individual or Alternate Motor Drive |
| Speed |
10 to 150 mtrs/min |
| Frames (Stacks) |
In MS or SS 304 |
|
| |
|
| Creaseless drying of fabric |
| Minimum Maintenance |
| Efficient steam consumption |
| Consistently high quality standard |
| Works with continuous processing ranges- Pre-Treatment, Mercerizing, Washing or Dyeing |
| Stand Alone with/without Mangle |
| |
|
| Teflon Coating on Drying Cylinders |
| Moisture Controller System |
| Temperature Controller System |
| Steam Exhaust Hood |
| Isolation of individual or group of Drying Cylinders |
| By passing the Cylinder Dryer for wet to wet operation |
| Restricting the stack entry of fabric to avoid over drying. |
| |
| |
